Thanh đấu nối, UTP, SL, DDM, 48 cổng cat6, 2U, rỗng, thẳng 760237041 | 9-1375055-2
- Mã sản phẩm : 760237041 | 9-1375055-2
- Xuất xứ : usa
- Bảo hành :
- Tình trạng : sẵn hàng
CPP-UDDM-SL-2U-48: CommScope® SL DDM Patch Panel, UTP, 2U, 48 port Straight

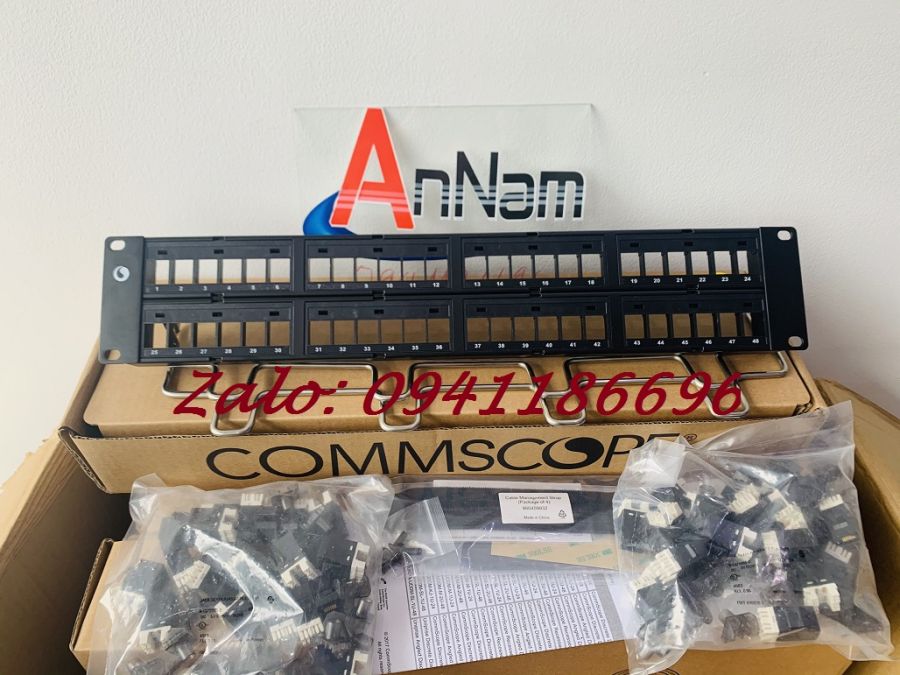

Chi tiếtPatch Panel 48 Port CAT6 COMMSCOPE (760237041 | 9-1375055-2)
Mã hiệu: 760237041 | 9-
1375055-2
Sản phẩm đi kèm full phụ kiện gồm
| 9-1375055-2 |
Ổ cắm UTP, Cat.6, T568A/T568B, 110 SL, RJ45, màu đen |
| 760237041 |
Thanh đấu nối, UTP, SL, DDM, 48 cổng, 2U, rỗng, thẳng |
Thanh đấu nối dạng rỗng UTP, 1U, 48port, SL– Mã sản phẩm 760237041
– Chiều cao 88.90mm | 3.50 in
– Chiều rộng 482.60 mm | 19.00 in
– Nhiệt độ hoạt động -10°C đến +60°C (+14°F đến +140°F)
– Nhiệt độ lưu trữ -40°C đến +70°C (-40°F đến +158°F)
– Tiêu chuẩn an toàn CUL | RCM | UL
– 48 cổng, Unshielded
– Màu đen
– Kích thước 2U (19 in)
| Product Classification |
| Portfolio |
Uniprise® |
| Product Type |
RJ45 patch panel |
| Regional Availability |
North America |
|
| Dimensions |
| Depth |
119.38 mm | 4.70 in |
| Diameter Over Dielectric, maximum |
1.168 mm | 0.046 in |
| Diameter Over Dielectric, minimum |
0.762 mm | 0.030 in |
| Height |
88.90 mm | 3.50 in |
| Width |
482.60 mm | 19.00 in |
|
| Electrical Specifications |
| ANSI/TIA Category |
6 |
| Current Rating |
1.5 A @ 20 °C
1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface |
1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact |
1000 Vac @ 60 Hz |
| Insulation Resistance, minimum |
500 MOhm |
|
| Environmental Specifications |
| Flammability Rating |
UL 94 V-0 |
| Operating Temperature |
-10 °C to +60 °C (+14 °F to +140 °F) |
| Relative Humidity |
Up to 95%, non-condensing |
| Safety Standard |
cUL | UL |
| Storage Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
|
| General Specifications |
| Total Ports, quantity |
48 |
| Cable Type |
Unshielded |
| Color |
Black |
| Modules, quantity |
8 |
| Package Quantity |
1 |
| Rack Type |
EIA 19 in |
| Rack Units |
2.0 |
|
| Mechanical Specifications |
| Conductor Gauge, solid |
22 AWG | 24 AWG |
| Conductor Gauge, stranded |
22 AWG | 24 AWG |
| Conductor Type |
Solid | Stranded |
| Contact Plating Material |
Precious metals |
| Material Type |
High-impact, flame retardant, thermoplastic | Powder-coated steel |
| Plug Insertion Life, minimum |
750 times |
| Plug Insertion Life, test plug |
IEC 60603-7 compliant plug |
| Plug Retention Force, minimum |
30 lbf | 133 N |
| Termination Contact Plating |
Nickel |
| Termination Type |
IDC |
| Wiring |
T568A | T568B
|
